IBOMBO PRS-LV2

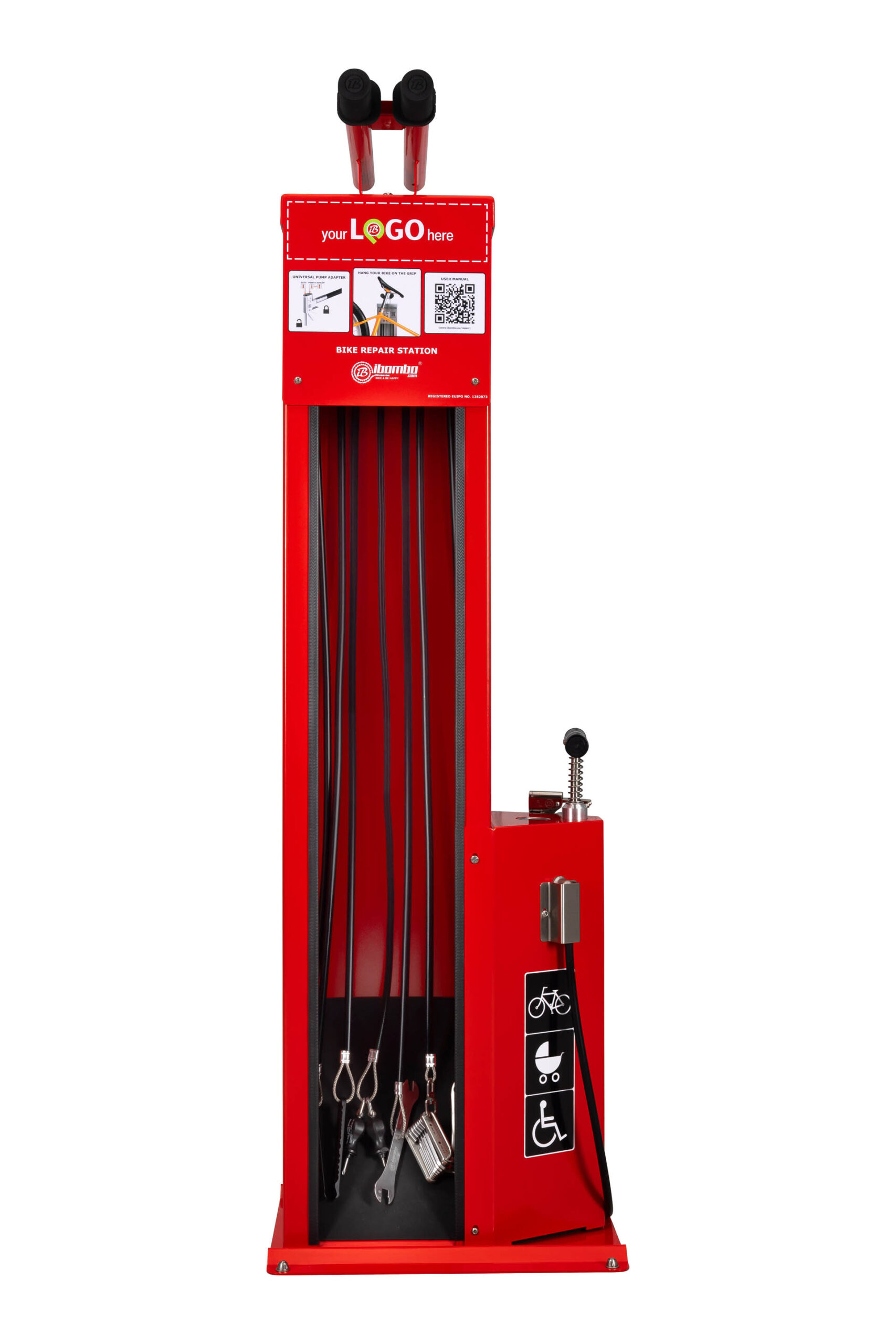

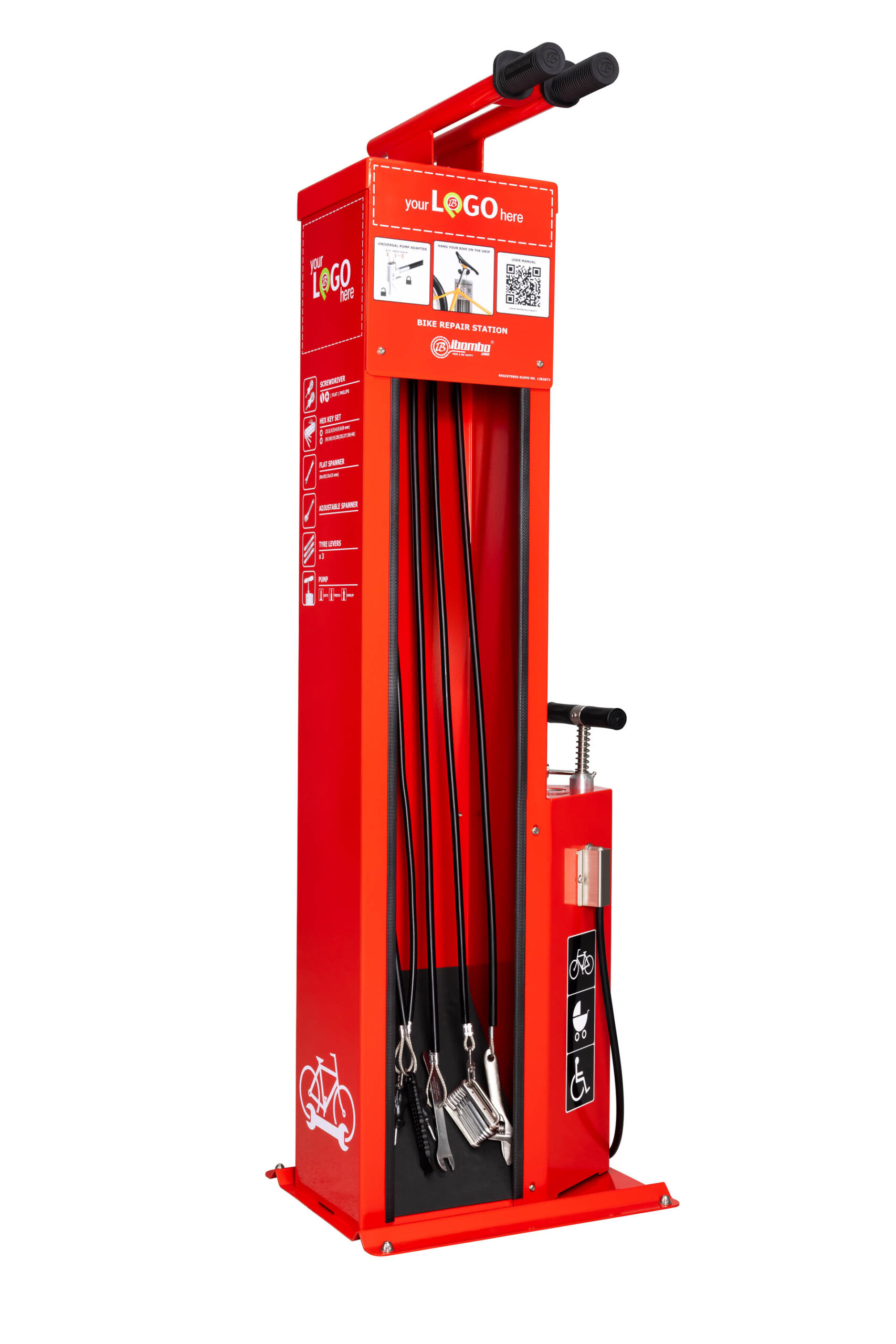

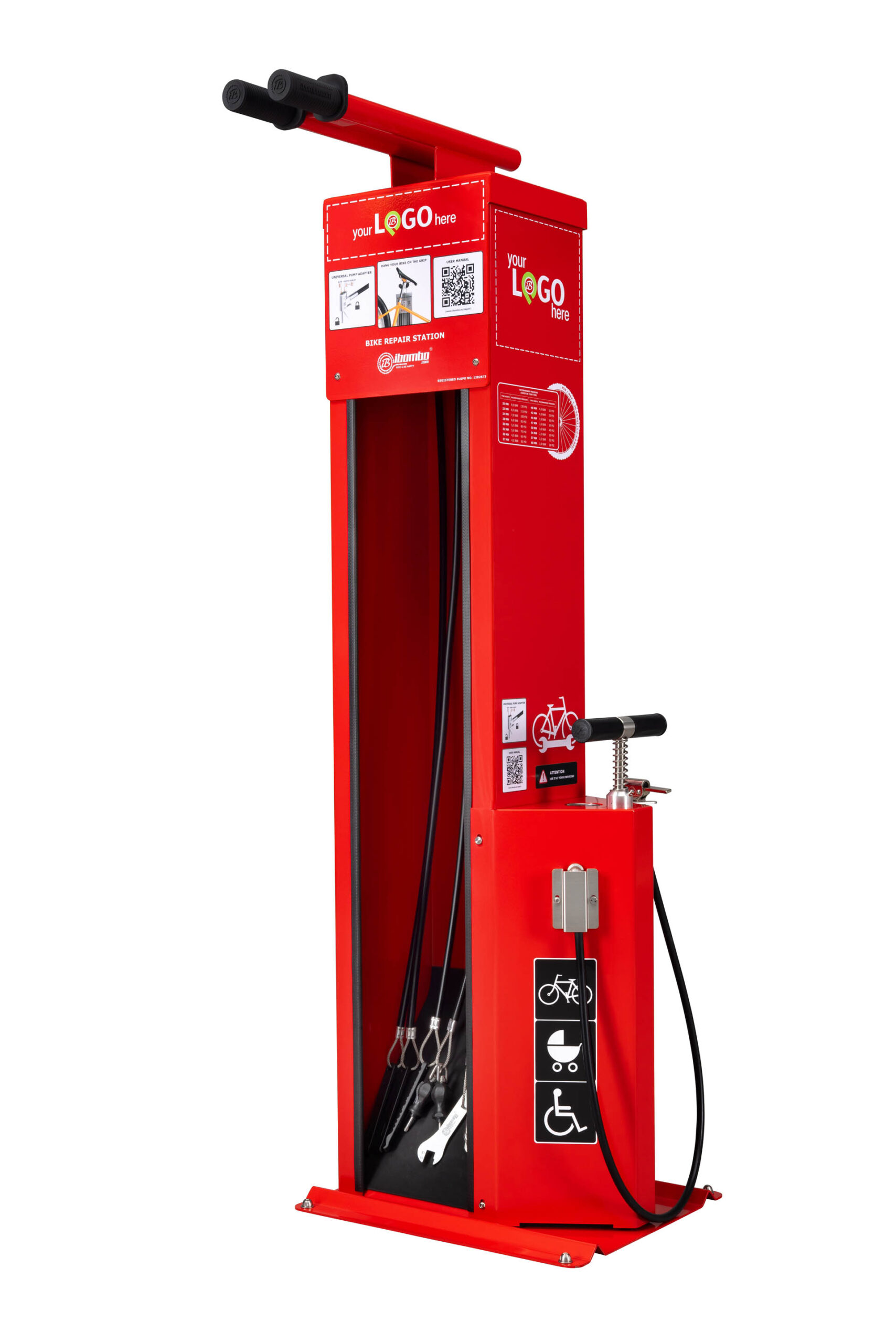

Self-Service Bike Repair Station – IBOMBO PRS-LV2 is adapted for use in public spaces. The housing of the device is made of galvanized or stainless steel with powder or thermoplastic coating The device is mounted to the ground or wall with the aid of anchors.

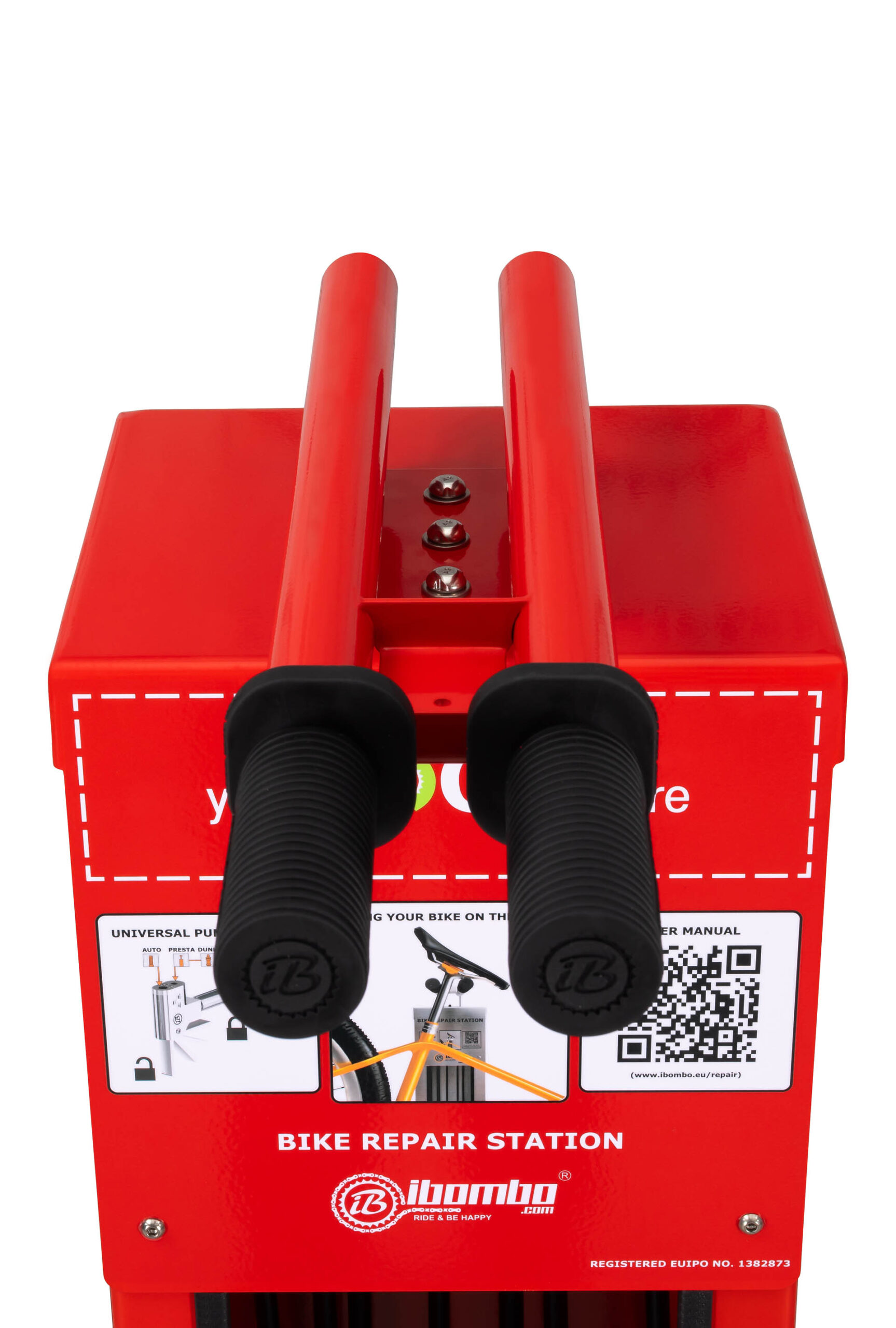

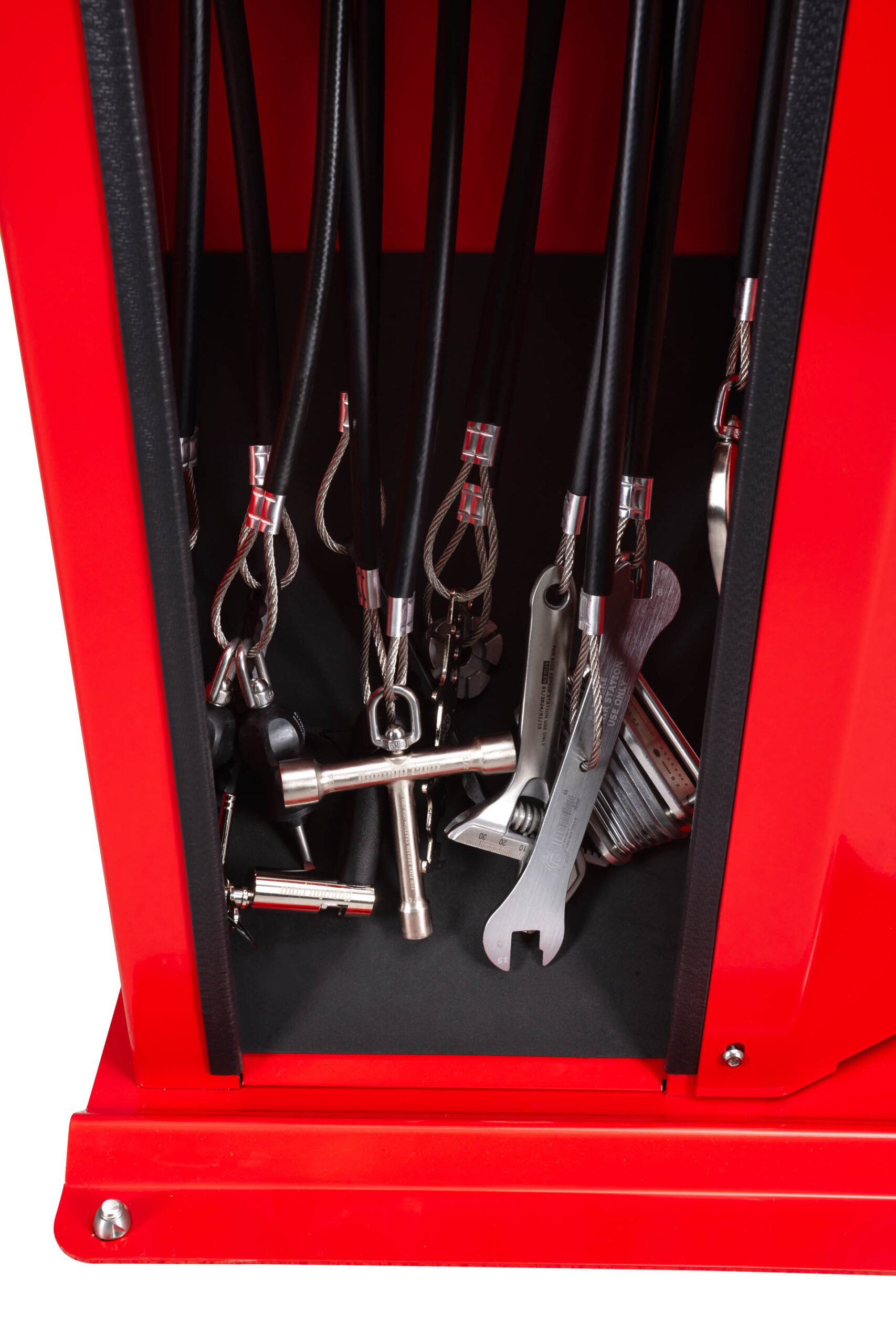

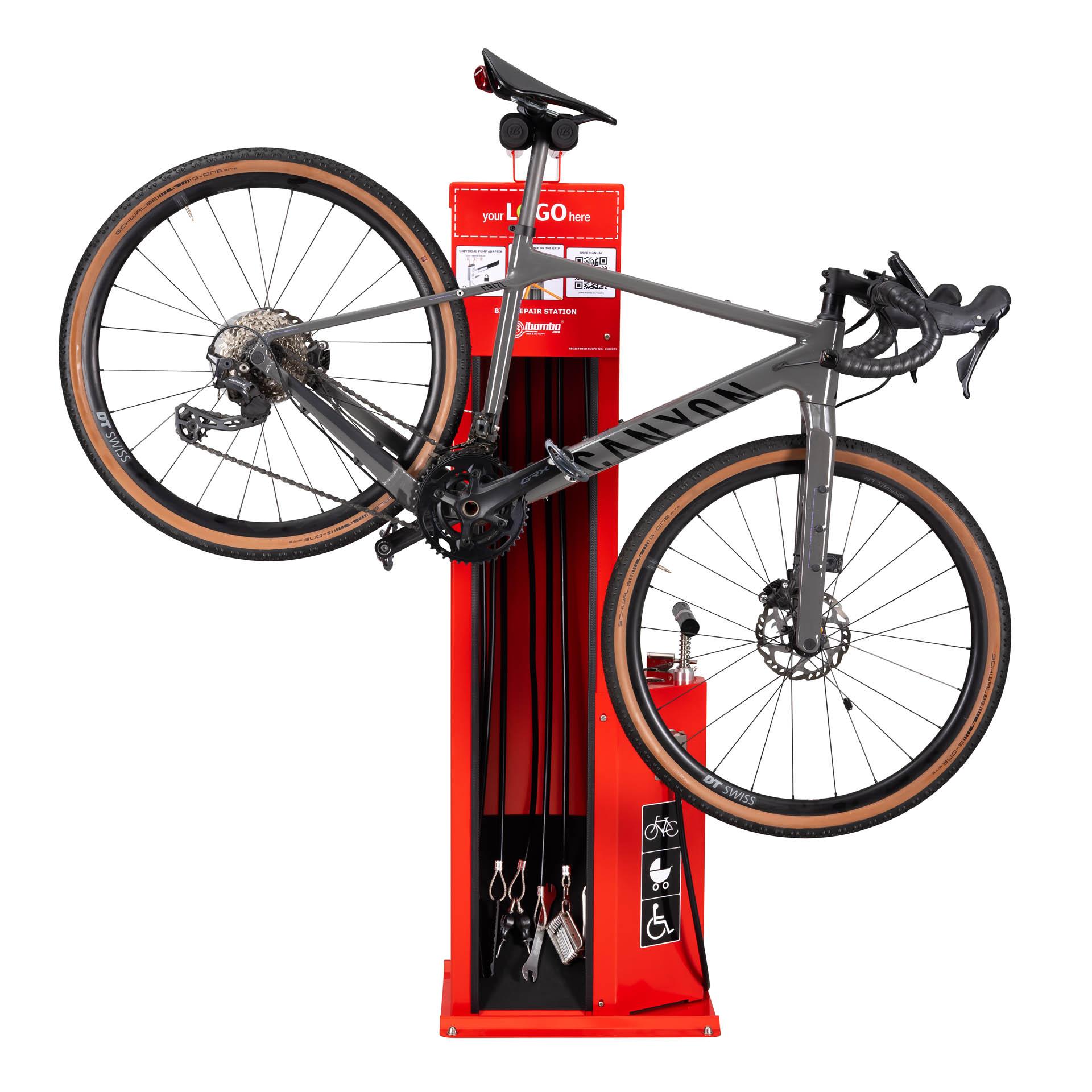

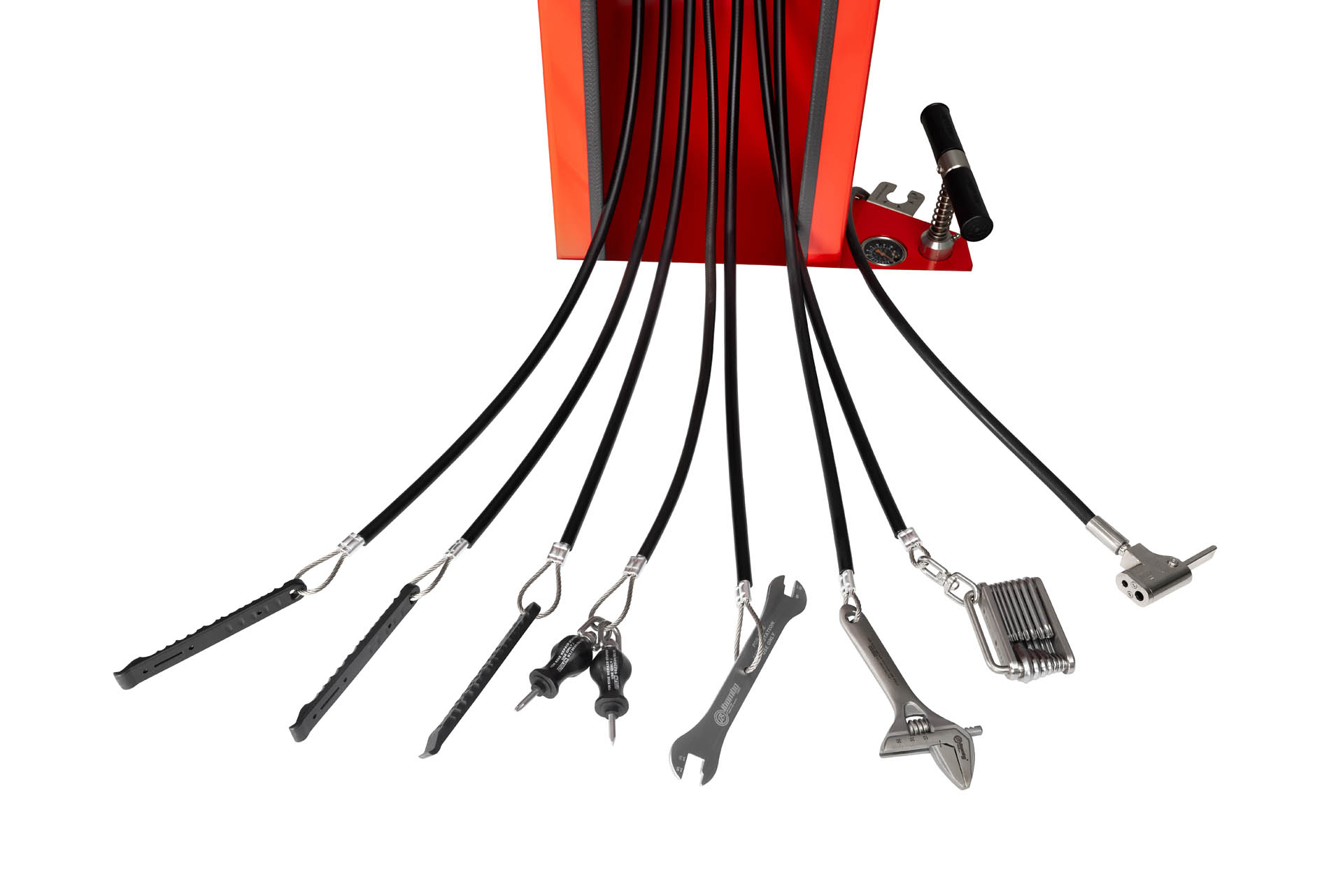

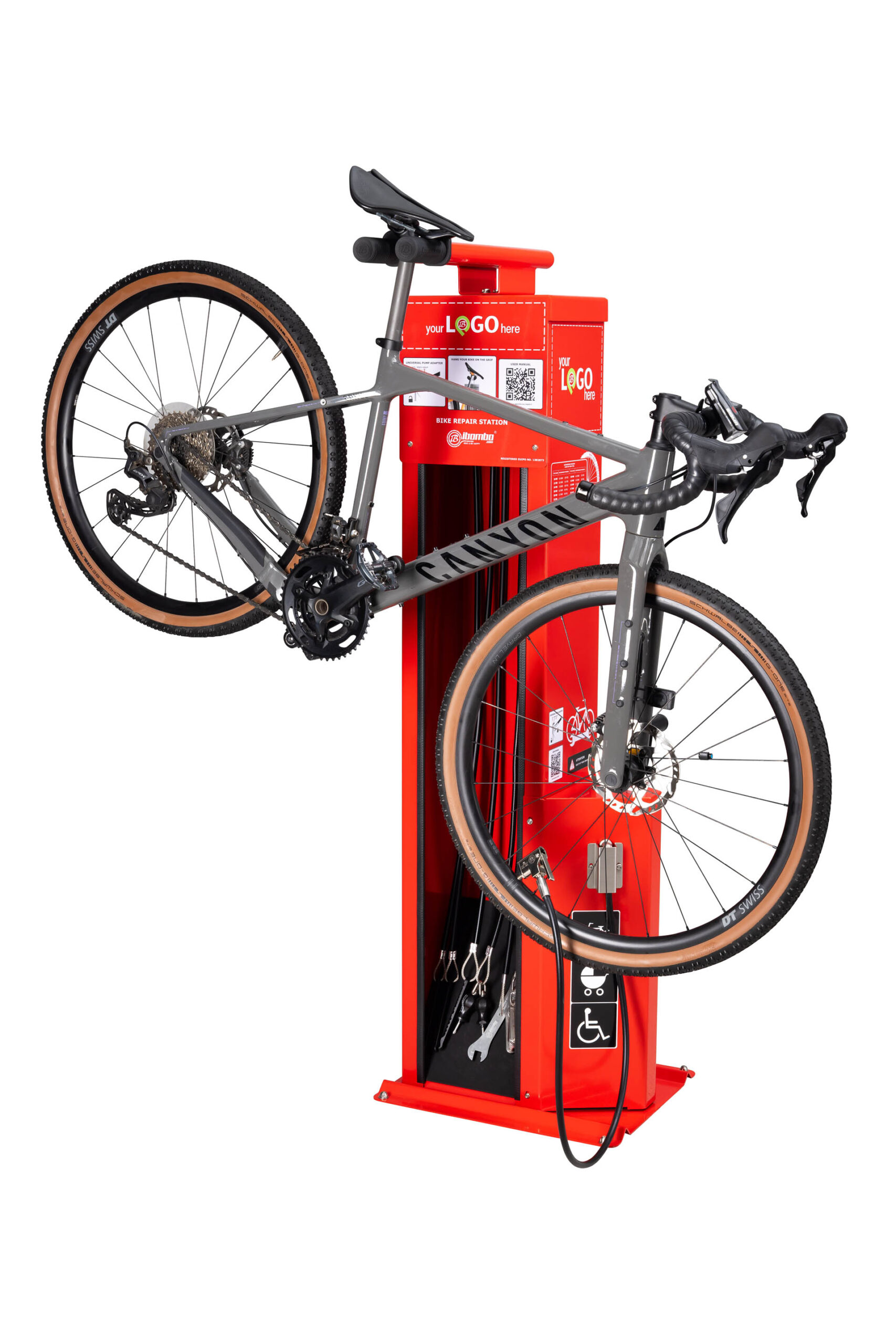

The tools are attached to the stainless steel ropes hanging inside the column of the station; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike. The station is equipped in a hand pump with an adapter for all valve types.

The QR CODE placed on the front of the station allows you to use online publications containing instructions on repairing bicycle faults. Sheet metal elements of the device are fastened with anti-theft screws – the bits for these screws will be handed over to the customer. This model of the station can be additionally equipped with, among others, aluminium waterproof frames, side-or-back bike stand, a pneumatic skateboard holder or E-BIKE bicycle charging module.

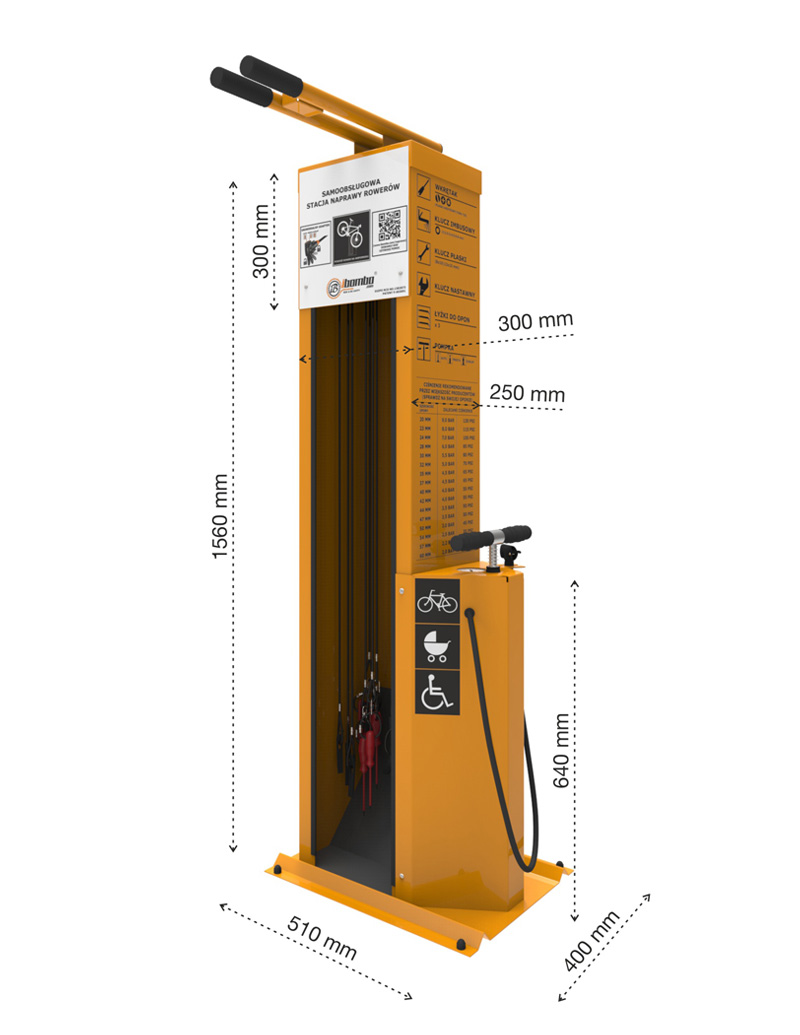

Dimensions:

156 x 51 x 40 cm

Weight:

65-90 kg (depending on optional equipment)

Advertising area:

up to 15000 cm2

Material:

galvanized | stainless steel AISI 304
Ask for price
  • housing made of galvanized or stainless steel (AISI 304)
  • powder or thermoplastic coating
  • up to 15000 cm2 of advertising area
  • QR CODE with repair manualGaleria
  • E-BIKE charging moduleGaleria

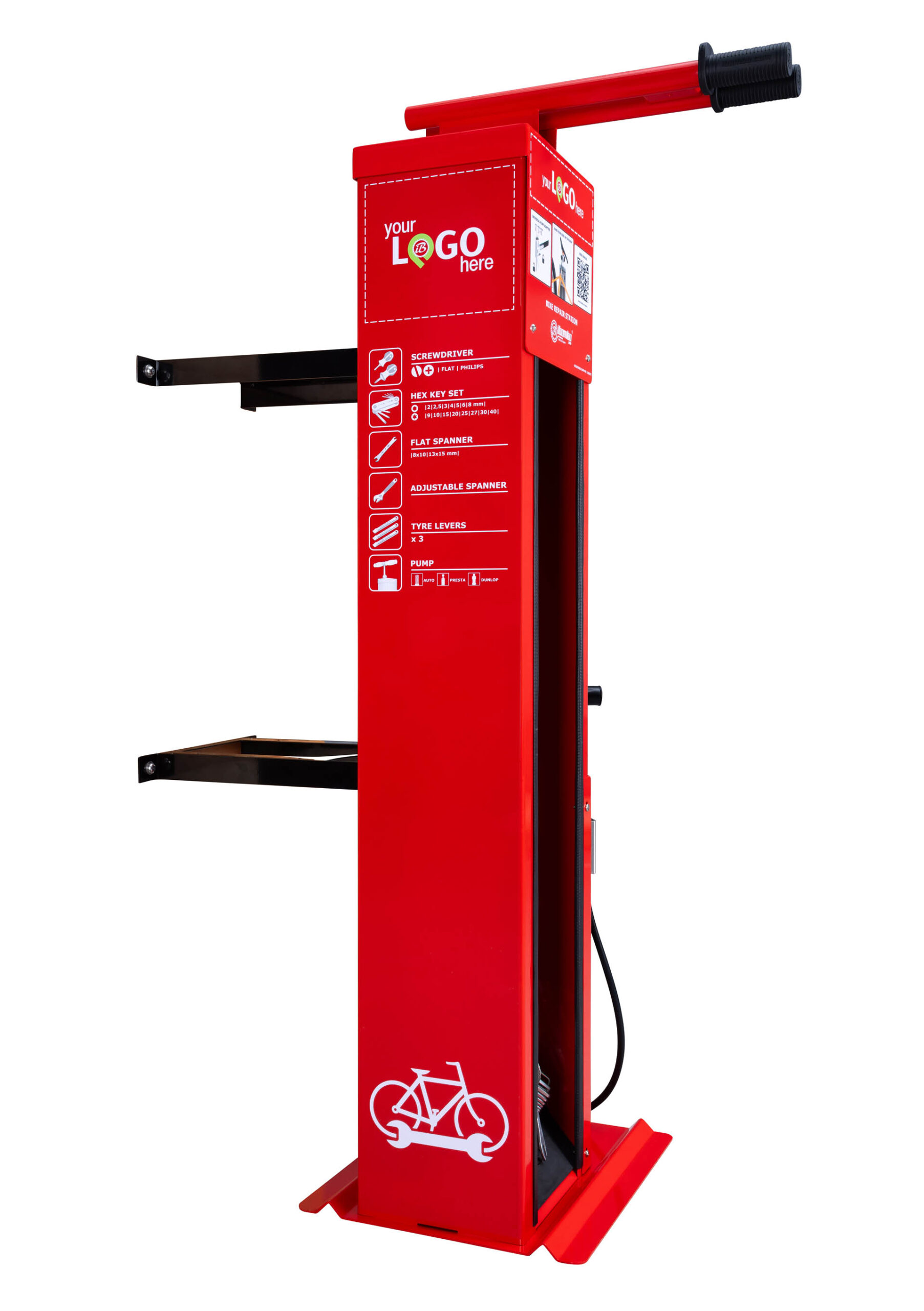

  • Big Side-or-back bike stand – powder coatedGaleria
  • Small Side-or-back bike stand - stainless steel (AISI 304)Galeria
  • pneumatic skateboard holderGaleria
  • aluminium waterproof frames (exchangeable A4 content) Galeria
  • anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the baseGaleria
  • stainless steel ropes fi 4 (AISI 316) with rubber coating fi11Galeria
  • Phillips screwdriver PH2 + swivel fi4 (AISI 304)Galeria
  • flat screwdriver 5.5 x 1.0 + swivelGaleria
  • hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivelGaleria
  • TORX key set | 9 | 10 | 15 | 20 | 25 | 27 | 30 | 40 | + swivelGaleria
  • adjustable spanner 0-32 mmGaleria
  • flat spanners 8x10 mm and 13x15 mm (stainless steel)Galeria
  • flat pliersGaleria
  • skateboard tools | 9/16 | 1/2 | 3/8 | + swivelGaleria
  • 3 x tire levers with stainless steel core - nylon coatedGaleria

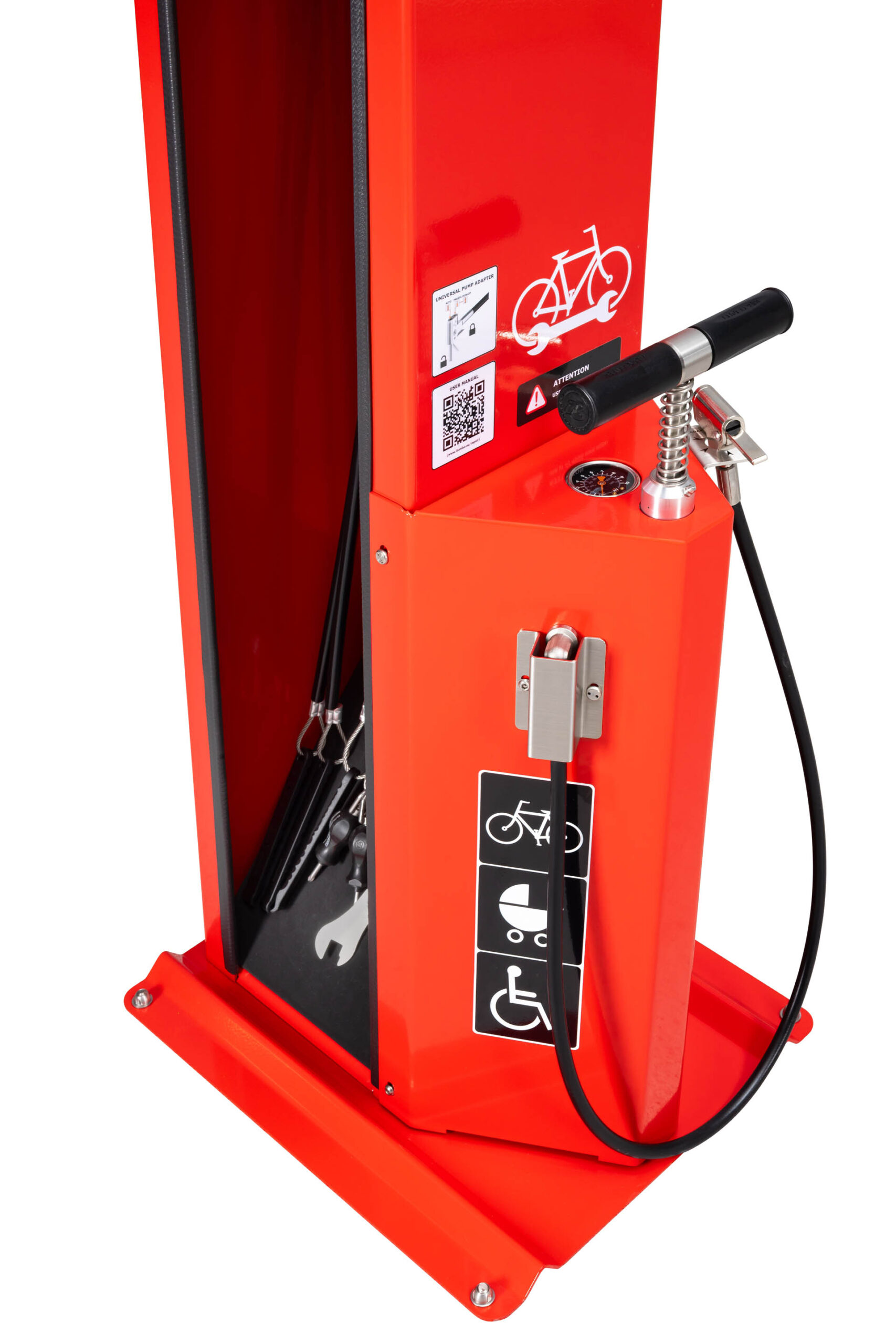

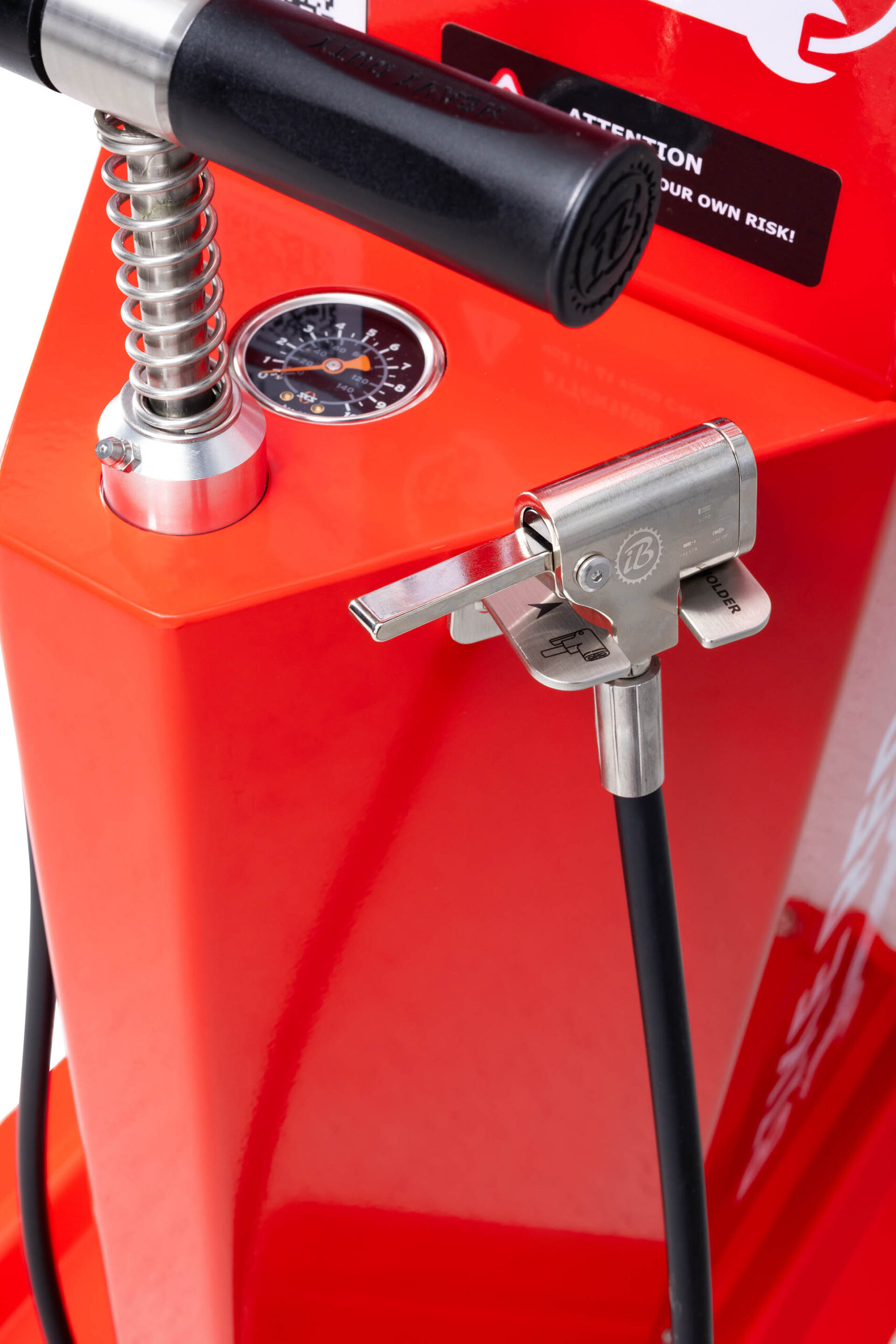

  • Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealantGaleria
  • Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™ with industrial grade AISI304 stainless steel internals dedicated to all types of bicycle valves (Presta, Schrader and Dunlop)Galeria
Basic palette - powder coating
RAL 9010

Pure white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 2008

Bright red orange

RAL 3020

Traffic red

RAL 4010

Telemagenta

RAL 4004

Claret violet

RAL 6018

Yellow green

RAL 6005

Moss green

RAL 5012

Light blue

RAL 5015

Sky blue

RAL 5017

Traffic blue

RAL 5002

Ultramarine blue

RAL 5003

Sapphire blue

Our products can be powder coated in many colours from the RAL palette – after checking the availability.

Basic palette - thermoplastic coating
RAL 9016

Traffic white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 3020

Traffic red

RAL 6005

Moss green

RAL 1015

Light ivory

RAL 5017

Traffic blue

RAL 5015

Sky blue

Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products. More information »







Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.

Place your logo for free!

We can place your logo / graphics on our products to take care of your brand image.

See our portfolio

PRODUCT REGISTERED IN EUIPO No.  1382873

We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
