IBOMBO E-HUB

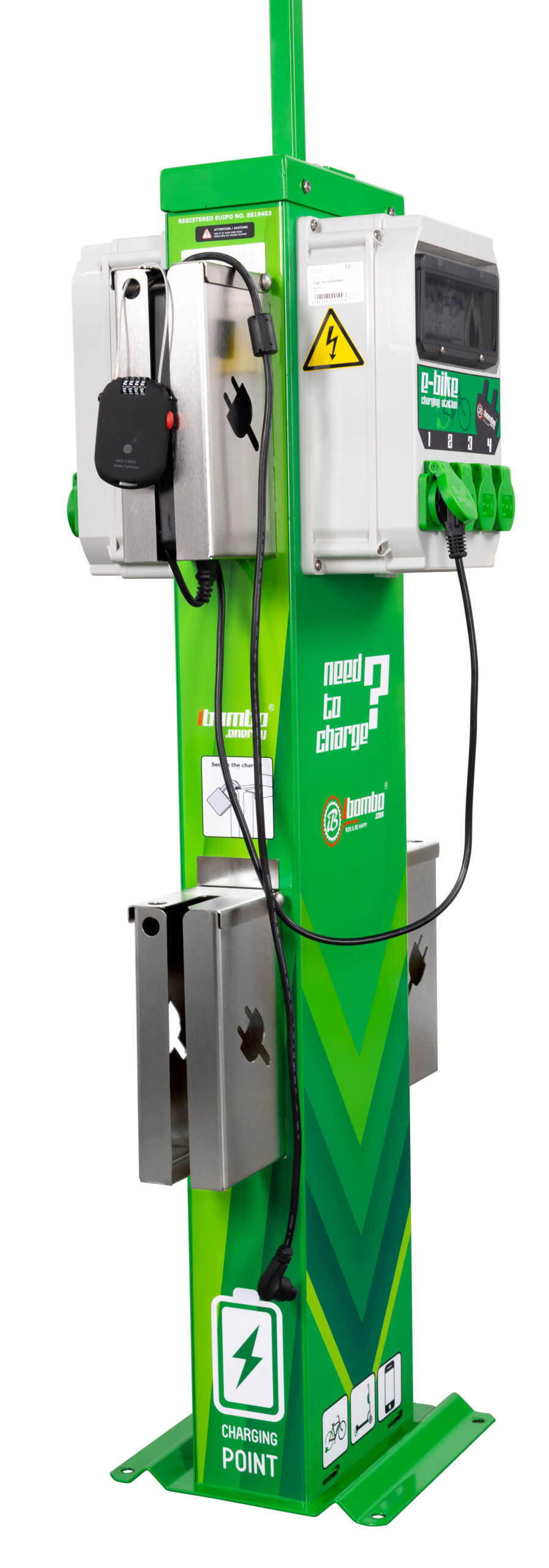

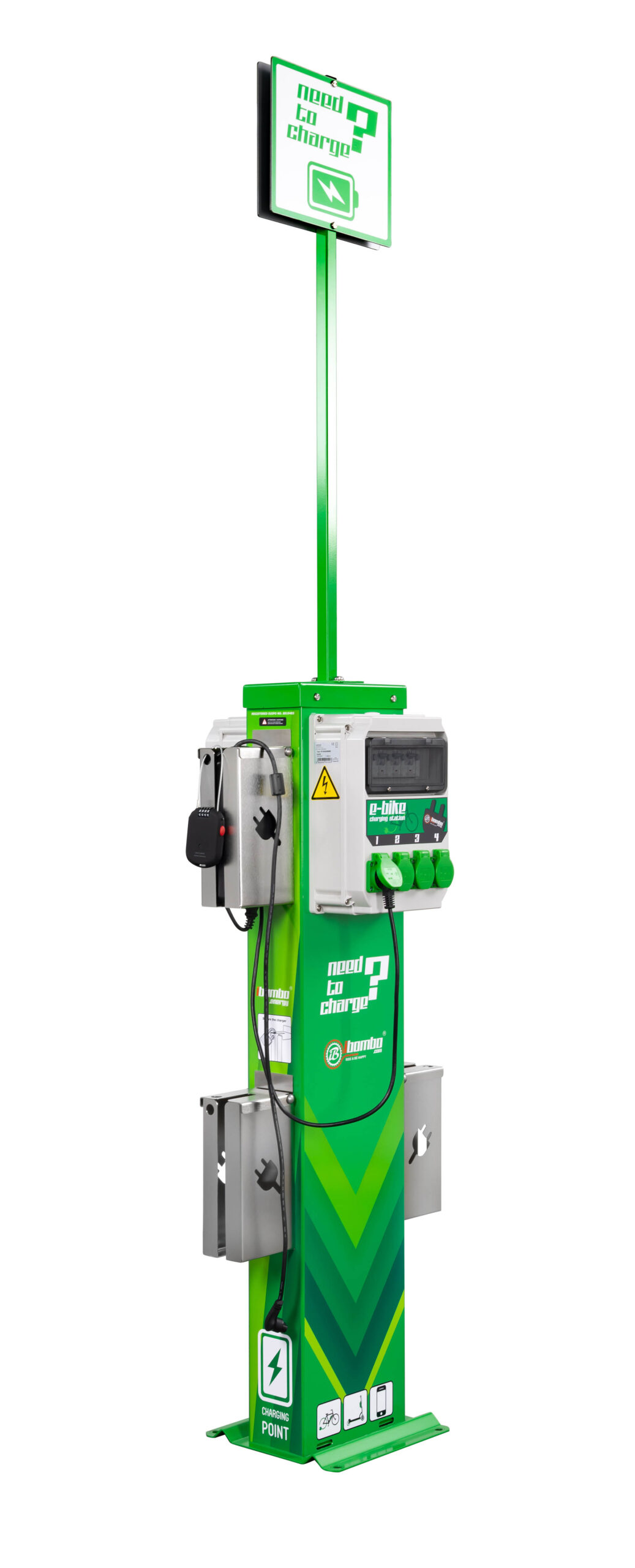

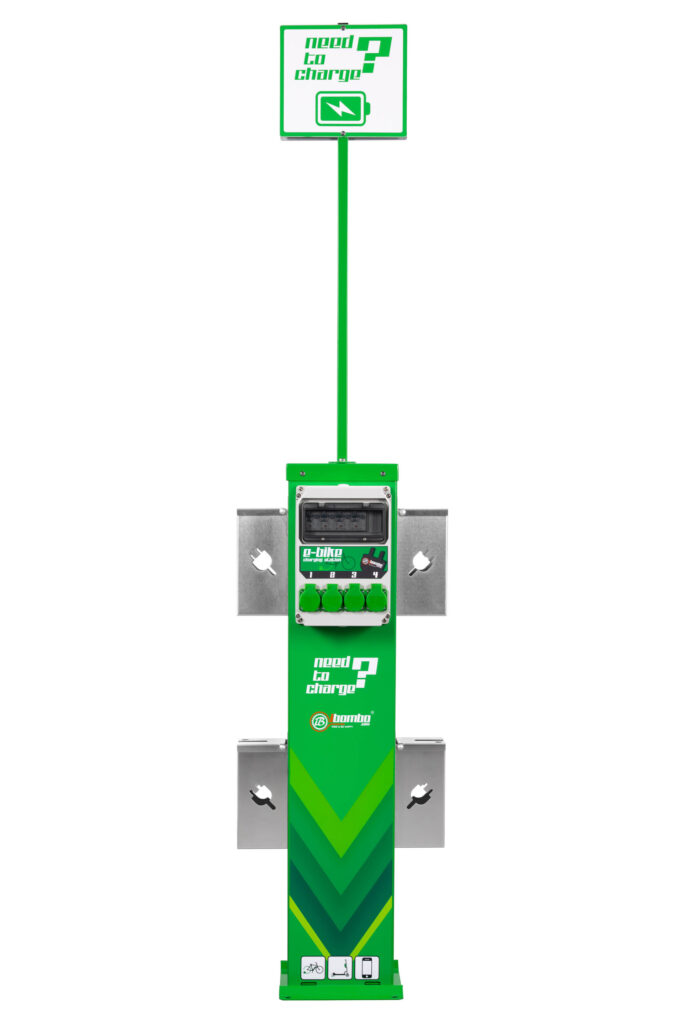

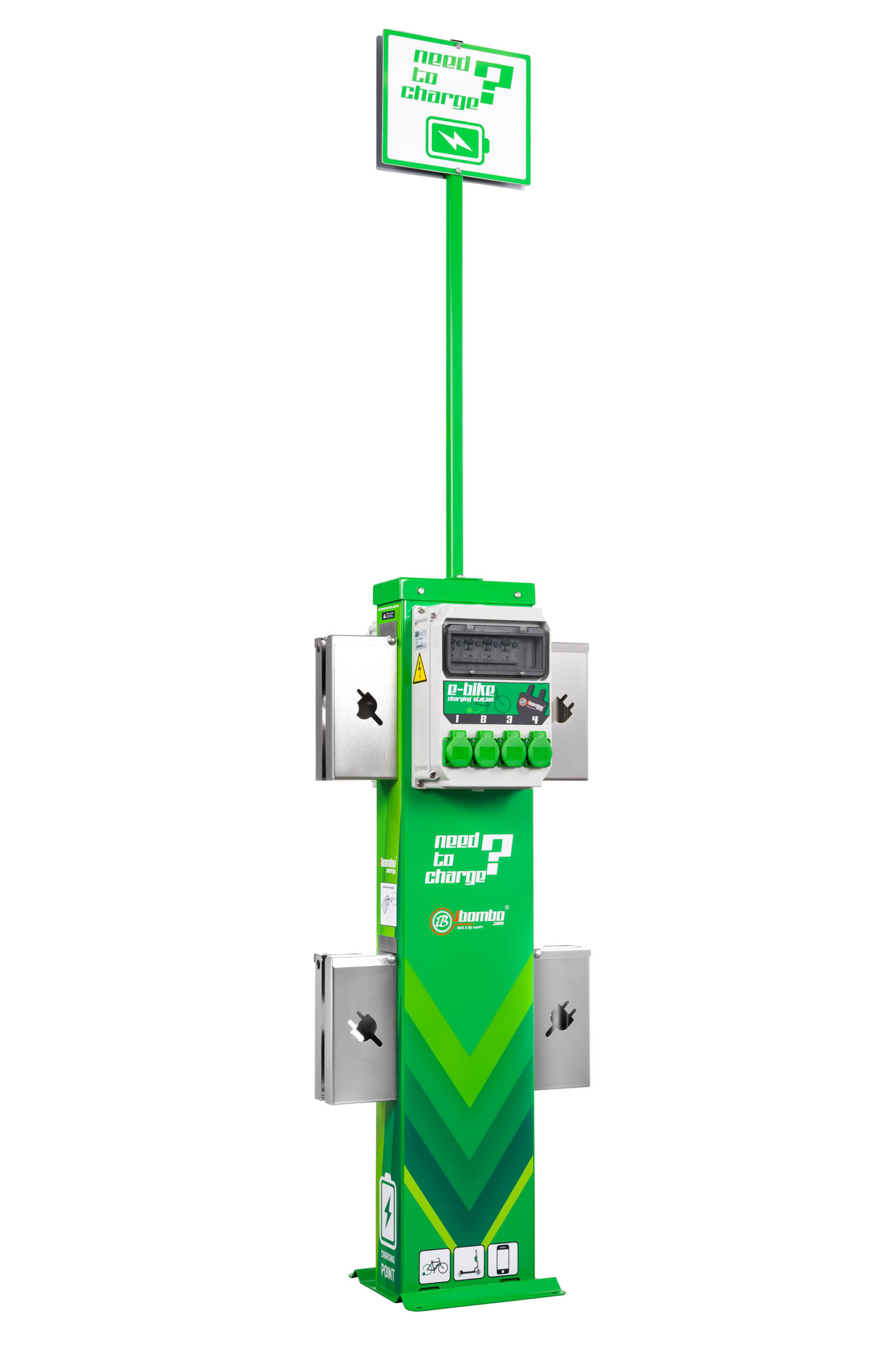

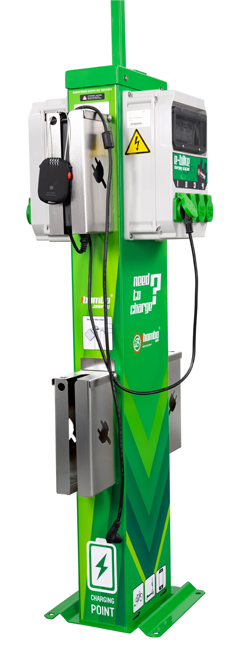

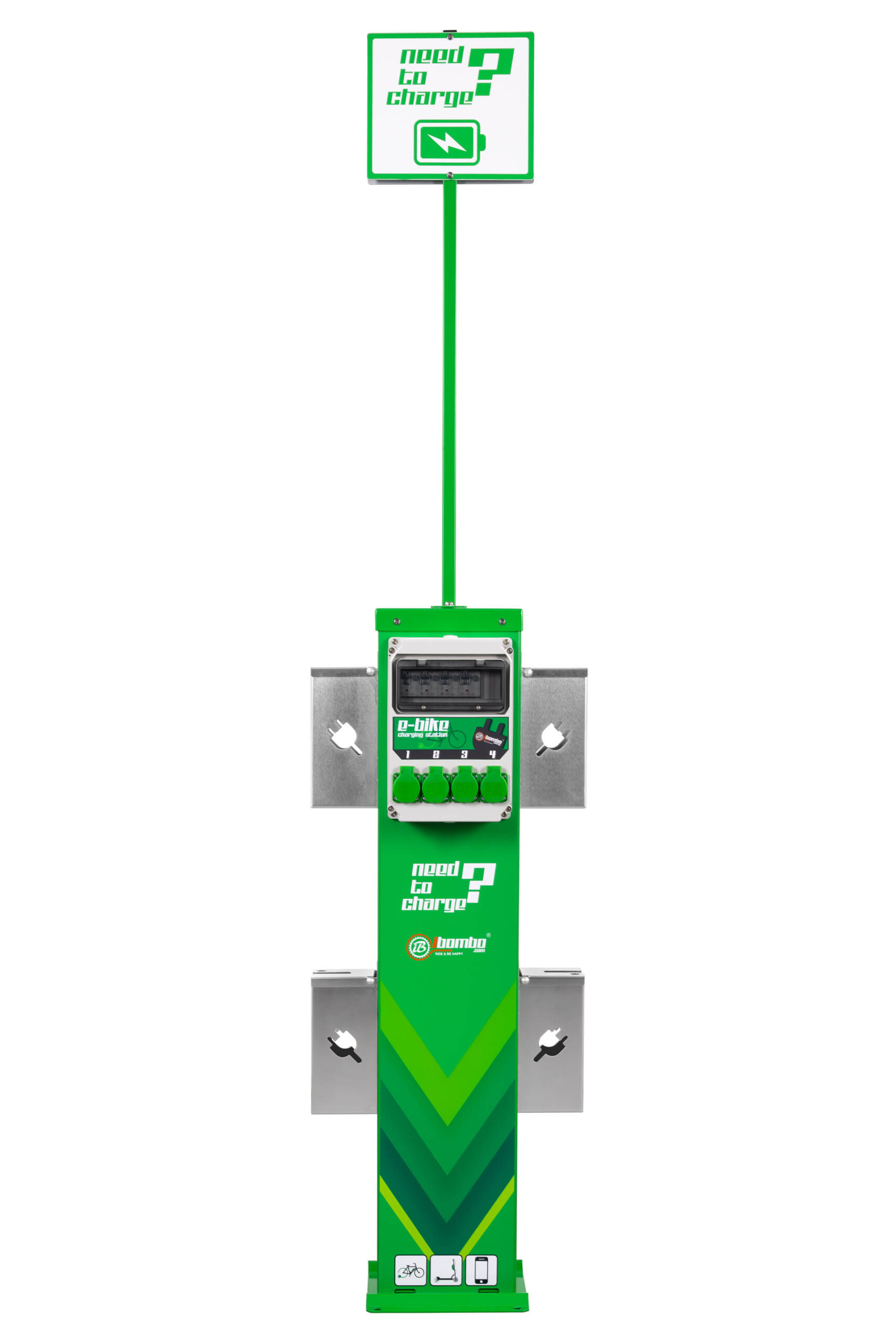

IBOMBO E-HUB Electric Bike Charging Station is adapted for indoor and outdoor use in public spaces. Its housing is made of galvanized steel with powder or thermoplastic coating. The device is mounted to the ground. Sheet metal elements and the E-BIKE charging module are fastened with anti-theft screws – the bits for the screws will be handed over to the customer.

In the basic version the device has a module with 4 x sockets (250V) for charging electric bikes and 4 x stainless steel holders for chargers. This product can be extended to 8 x sockets (250V), bike stands and other accessories.

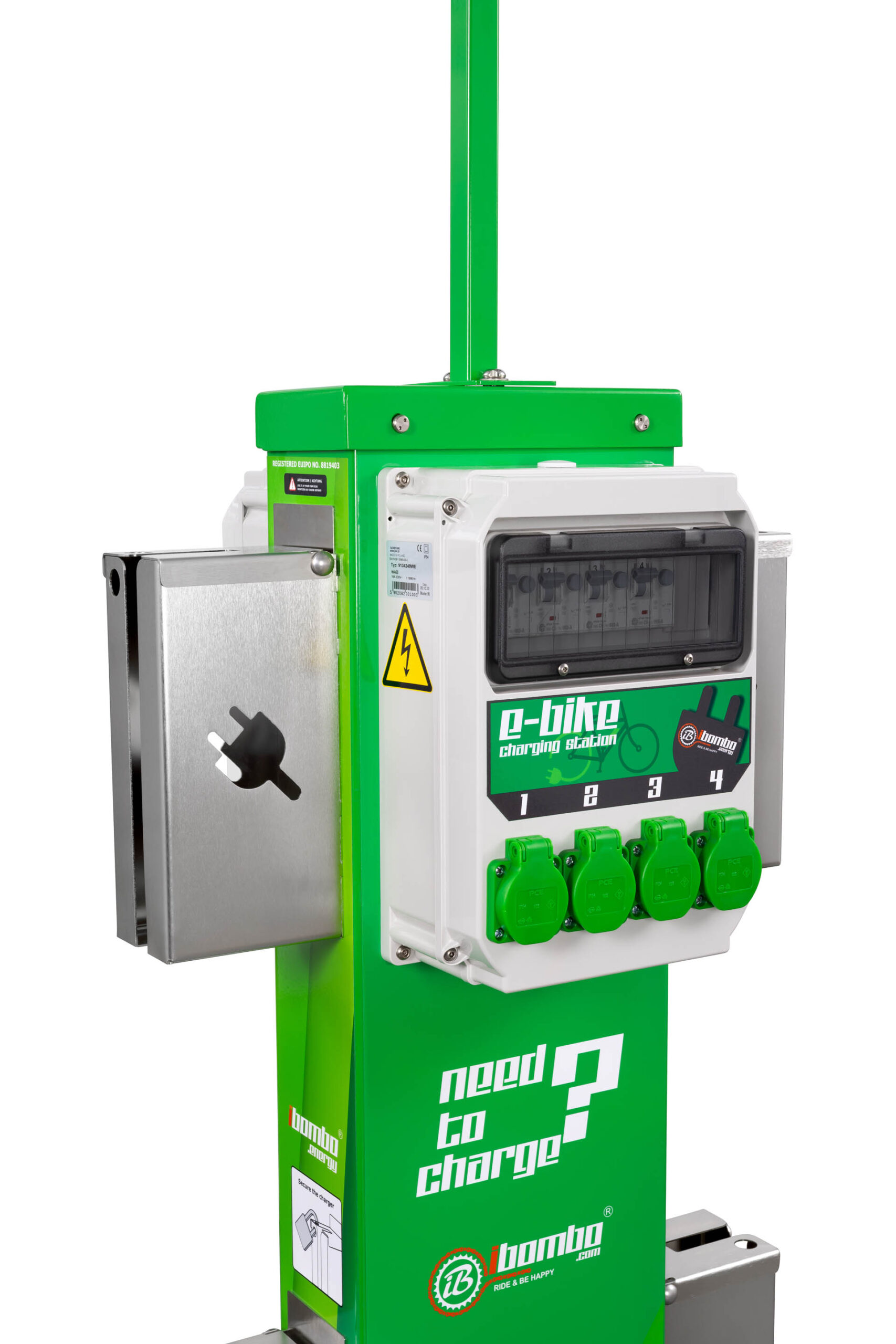

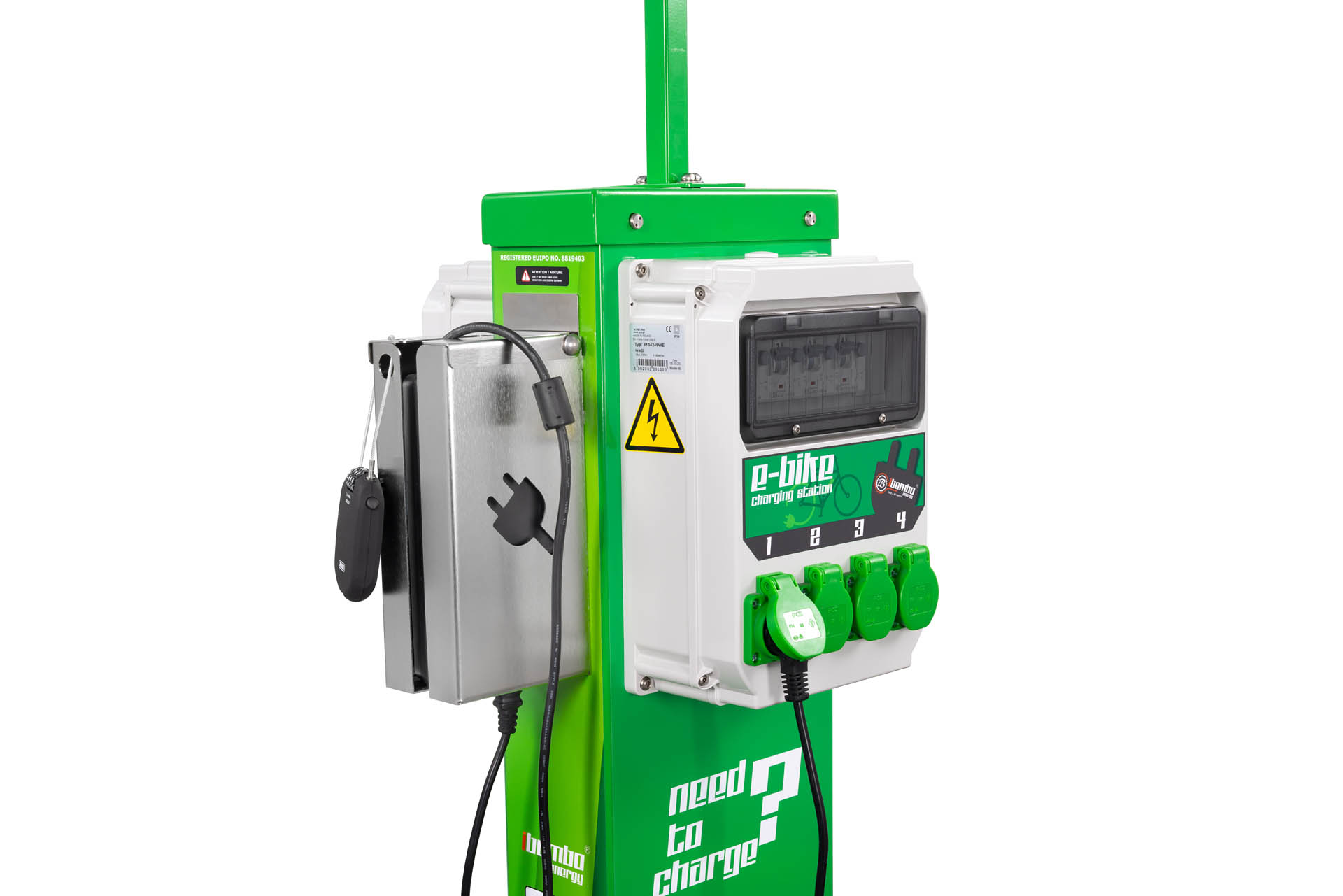

The E-BIKE charging module has a compact housing made of high-strength PC / ABS; it has additional RCBO (6A) protection located behind a protective, impact-resistant window. All external parts are made of stainless steel. The sockets (250V) are made of polyamide (PA6) with nickel-plated contacts (IP54).

A safe and convenient complement to the E-BIKE charging module will be our bike racks » CLASSIC SERIES » SILICONE PROTECT.

Produkt polski

The E-BIKE module complies with European standards:
Directive (RoHS) 2011/65 / EU and 2015/863
2014/35 / EU Low Voltage Directive
Electromagnetic Compatibility (EMC) Directive 2014/30 / EU
Used standards: EC / EN 61439-1; IEC / EN 61439-4

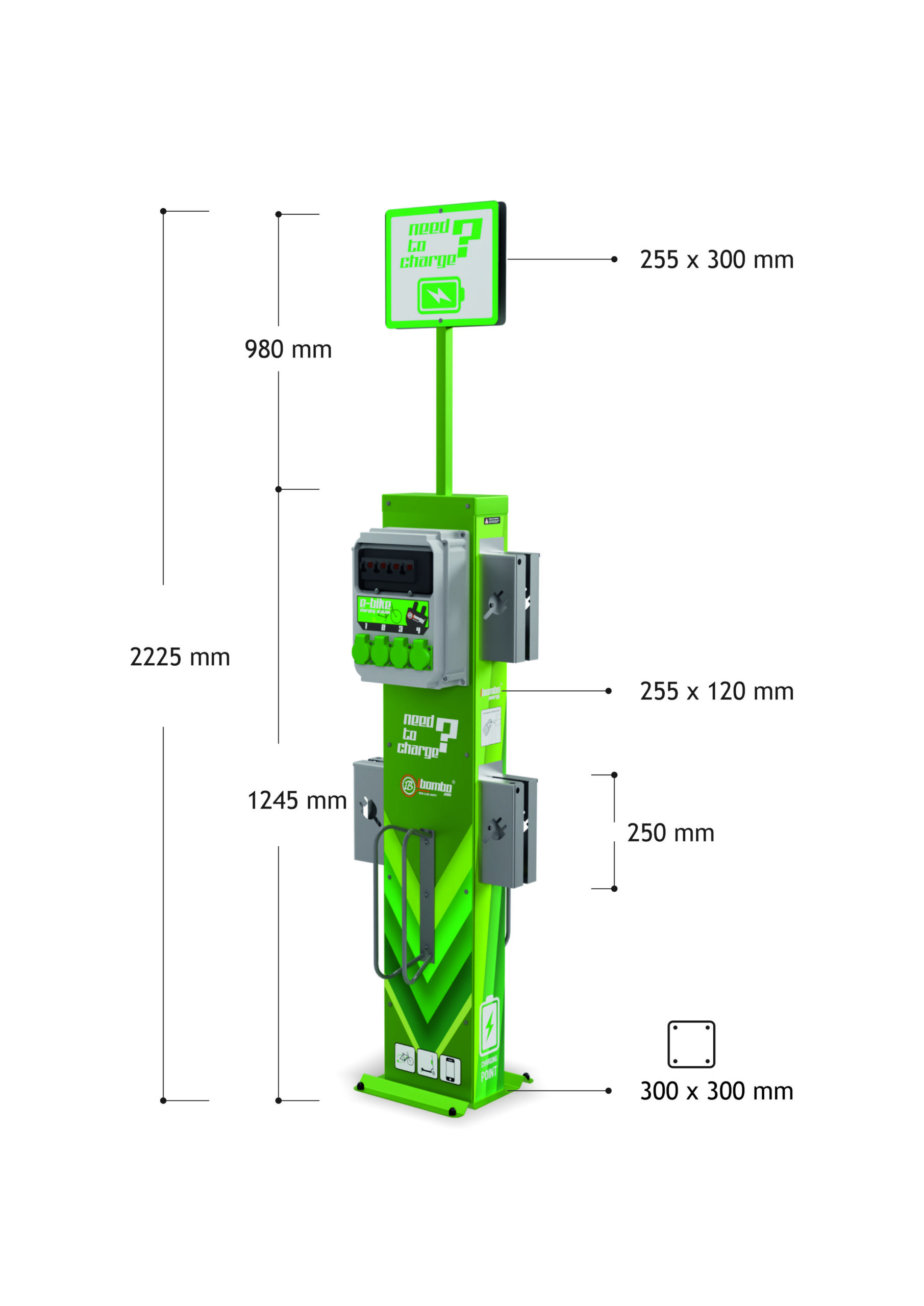

Dimensions:

126/226 x 54 x 41 cm

Weight:

30-40 kg

Advertising area:

up to 8000 cm2

Material:

: galvanized
Ask for price
  • housing made of galvanized steel
  • powder or thermoplastic coating
  • up to 8000 cm2 of advertising area
  • anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the baseGaleria
  • 1 or 2 E-BIKE charging modulesGaleria
  • 4 x small side-or-back bike stand - stainless steel (AISI 304)Galeria
  • 4 x holders for E-BIKE chargersGaleria
  • 1 x stand with an E-BIKE information plateGaleria
Basic palette - powder coating
RAL 9010

Pure white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 2008

Bright red orange

RAL 3020

Traffic red

RAL 4010

Telemagenta

RAL 4004

Claret violet

RAL 6018

Yellow green

RAL 6005

Moss green

RAL 5012

Light blue

RAL 5015

Sky blue

RAL 5017

Traffic blue

RAL 5002

Ultramarine blue

RAL 5003

Sapphire blue

Our products can be powder coated in many colours from the RAL palette – after checking the availability.

Basic palette - thermoplastic coating
RAL 9016

Traffic white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 3020

Traffic red

RAL 6005

Moss green

RAL 1015

Light ivory

RAL 5017

Traffic blue

RAL 5015

Sky blue

Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products.
More information »



Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.

Place your logo for free!

We can place your logo / graphics on our products to take care of your brand image.

See our portfolio

PRODUCT REGISTERED IN EUIPO No. 8819403

We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
